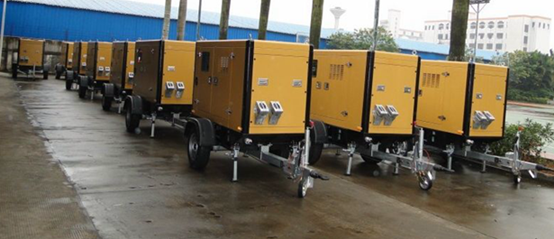

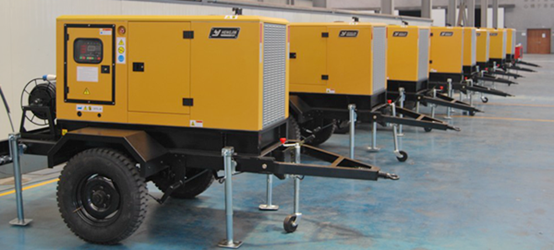

Trailer Diesel Generator (Satisfy EU Road Transport Standard)
Features of Our Trailer Diesel Generator
1. With all the advantages of our silent generator. Suitable for outdoor works. Towing device is put aside on the wheel chassis to keep balance. 2. Equipped with warning lamp according to transport safety standards. Cable rack for option.
3. Trailer diesel generator is available with single or tandem axles, and surge or electric brakes can best fit your needs.
4. Trailer-mounted and skid-application fuel tanks are both filled through a locking fuel door on the generator cabinet. Brushless, Self-excited, IP23, insulation class H alternator. 24V DC start motor and storage battery.
5. 40℃ radiator as standard, 50℃ is optional. 8-hour operation base tank.
6. Key start control panel, and auto-start control panel for choice. All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load, 110% load and all protection function.
(1) On-Road Type Trailer Generator Description
ON-ROAD
Model |
Trailer Specification |
Trailer
Brand |
Axle Model |
Load
Capacity |
Speed |
|
YZT1200 |
B1200 single axle with inertia
drum brake & parking brake,
jockey wheel, tyre & rim, mudguard adjustable
height drawbar, draw eye |
German AL-KO |
B1200 |
1.3T |
≤60km/h |
|
YZT1500 |
B1500 single axle with inertia drum
brake & parking brake,
jockey wheel, tyre & rim, mudguard
adjustable height drawbar, draw eye |
German AL-KO |
B1500 |
1.5T |
≤60km/h |
|
YZT2000 |
B2000 single axle with inertia drum
brake & parking brake,
jockey wheel, tyre & rim, mudguard adjustable
height drawbar, draw eye |
German AL-KO |
B2000 |
2.0T |
≤61km/h |
|
YZT2600 |
B1300x2 Double axle with inertia
drum brake & parking brake,
jockey wheel, tyre & rim, mudguard
adjustable height drawbar, draw eye |
German AL-KO |
B1300X2 |
2.6T |
≤64km/h |
|
YZT4000 |
B2000x2 Double axle with inertia
drum brake & parking brake,
jockey wheel, tyre & rim, mudguard
adjustable height drawbar, draw eye |
German AL-KO |
B2000X2 |
3.5T |
≤65km/h |
(2) Off-Road Type Trailer Generator Description
OFF-ROAD
Model |
Trailer Specification |
Trailer
Brand |
Axle
Model |
Load
Capacity |
Speed |
|
YZT2000D |
B2000 single axle only with parking brake,
jockey wheel, tyre & rim, mudguard stable
height drawbar, draw eye |
German AL-KO |
B2000 |
2.0T |
≤25km/h |
|
YZT2600D |
B1300x2 Double axle with inertia
drum brake & parking brake,
jockey wheel, tyre & rim, mudguard
adjustable height drawbar, draw eye |
CHINA HC |
B1300X2 |
2.6T |
≤25km/h |
|
YZT3600D |
B1800x2 Double axle with inertia
drum brake & parking brake,
jockey wheel, tyre & rim, mudguard
adjustable height drawbar, draw eye |
CHINA HC |
B1800X2 |
3.5T |
≤25km/h |
|
YZT6000D |
B3000x2 Double axle with air brake,
tyre & rim, mudguard steel
plate spring anti-vibration |
CHINA JW |
C3000X2 |
6.0T |
≤25km/h |
|
YZT8000D |
B4000x2 Double axle with air brake,
tyre & rim, mudguard steel
plate spring anti-vibration |
CHINA JW |
C4000X2 |
8.0T |
≤25km/h |
|
